Description

The Connection Liner for Junctions (CIPP) is a professional-grade CIPP liner designed for the trenchless rehabilitation of pipe junctions and branch connections.

Each liner is made from stitched, needle-punched nonwoven polyester fabric, giving it both shape and flexibility to adapt to bends and junction angles.

The outer cover of our liners is made from polyurethane (PU), so we recommend using them with epoxy resin. They are non-welded, meaning there’s no additional tape covering the stitched seam.

Available shapes:

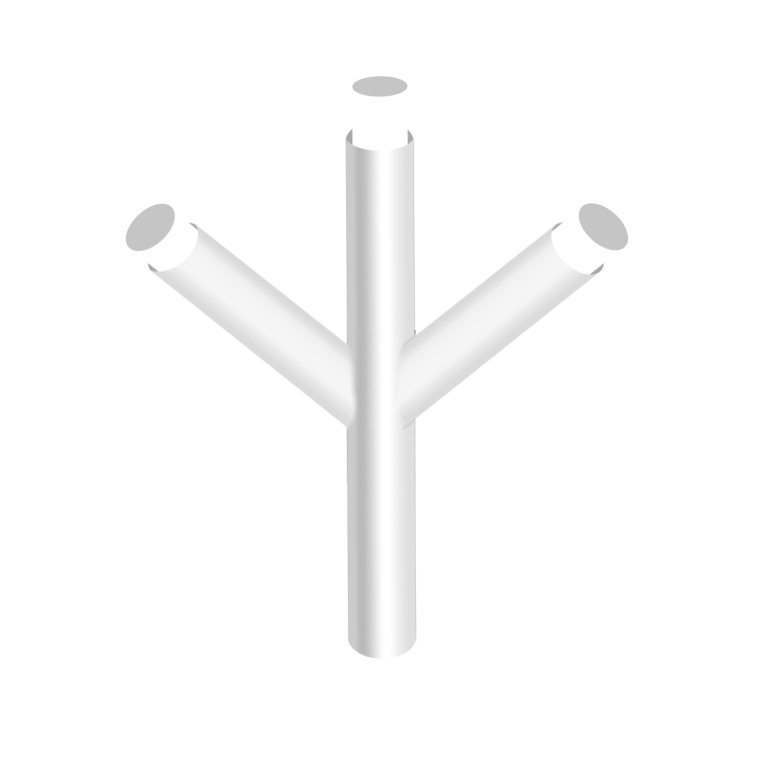

Y-shape (45°)

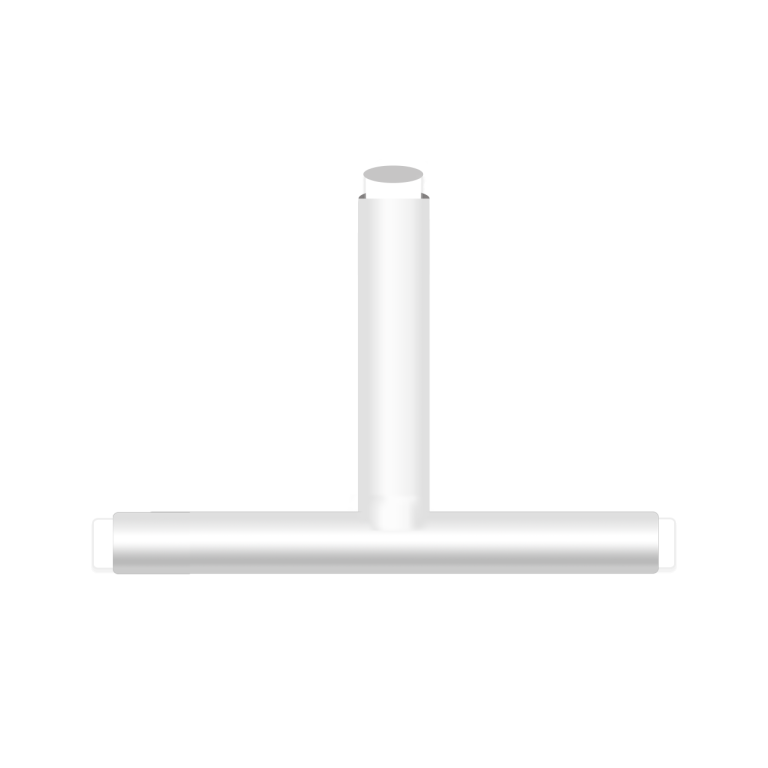

T-shape (90°)

Double Lateral Liners:

These come in three configurations, depending on the angle between the horizontal and vertical pipes. Select “Double Lateral (180°–90°)” when ordering this type. In addition, the overall liner angle can vary.

For example, this image shows liners at a 180° position, typically used for surface-mounted pipes:

90° horizontal connection

Select “Double lateral (180°- 90°)” when choosing your size.

Apart from this, we have the angle of the liner. In the examples above, the angle is set to the 180° position, so they would be for surface mounted pipes. If you are dealing with pipes that are in a corner, then you would chose a double lateral liner with a 90° position like this:

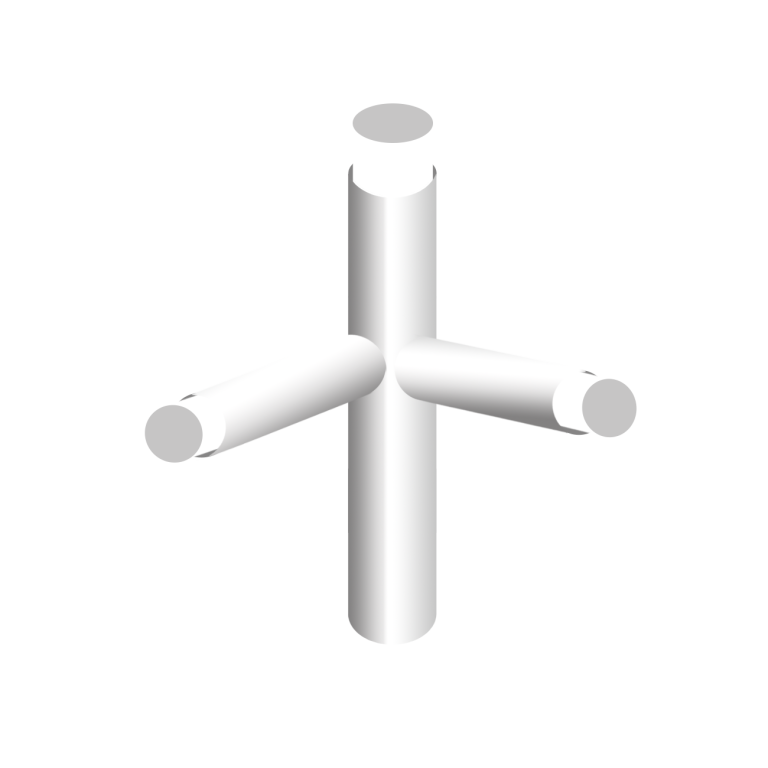

Double Lateral (90°–90°)

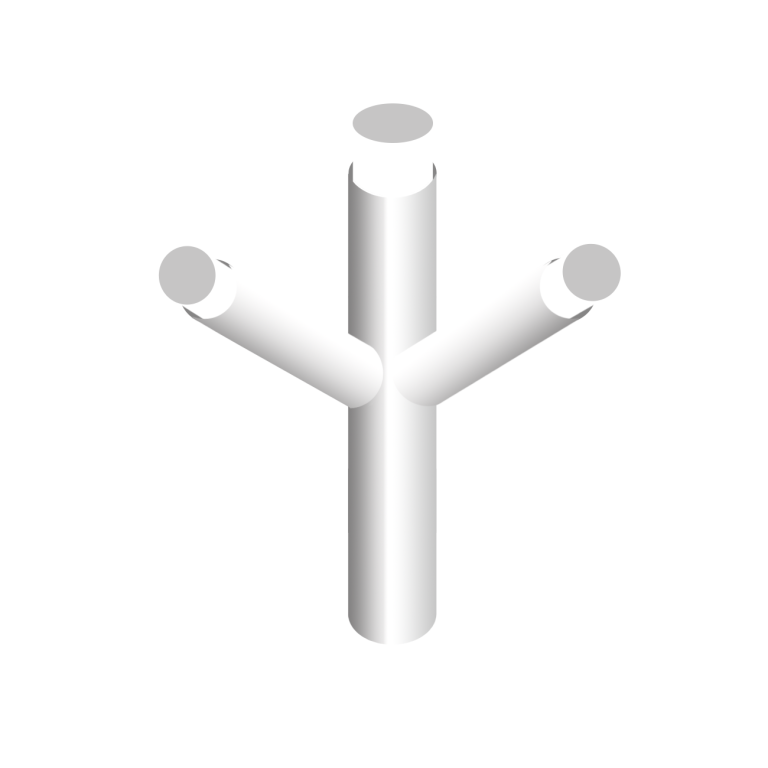

Double Lateral (90°–45°)

Select “Double Lateral (90°- 90°)”, or “Double Lateral (90°- 45°)”

If any of this information is unclear, please contact us and we will gladly assist you.

Please note, that while these liners are extremely popular with trenchless technology and CIPP tradesmen, we can only offer a limited warranty on these items because we can not vouch for user experience. We discourage DIY users and untrained individuals from purchasing any of our tools and products.
